Module Loading Operations

The general operations to load a module involve module release and pickup, glue dispensing in the nominal location and finally loading the module and adjusting its position to as close to nominal as achievable.

Module release and pickup

Todo

Picture of Module in its transport frame, highlighting wirebonds, and pointing at suction cups

Todo

Picture of Module on pickup jig, with lifting tool on it?

Todo

Picture of Module on pickup jig with bridge sitting across, top view, highlighting alignment interfaces

Glue dispensing comes first

Todo

Picture of the gluing tab

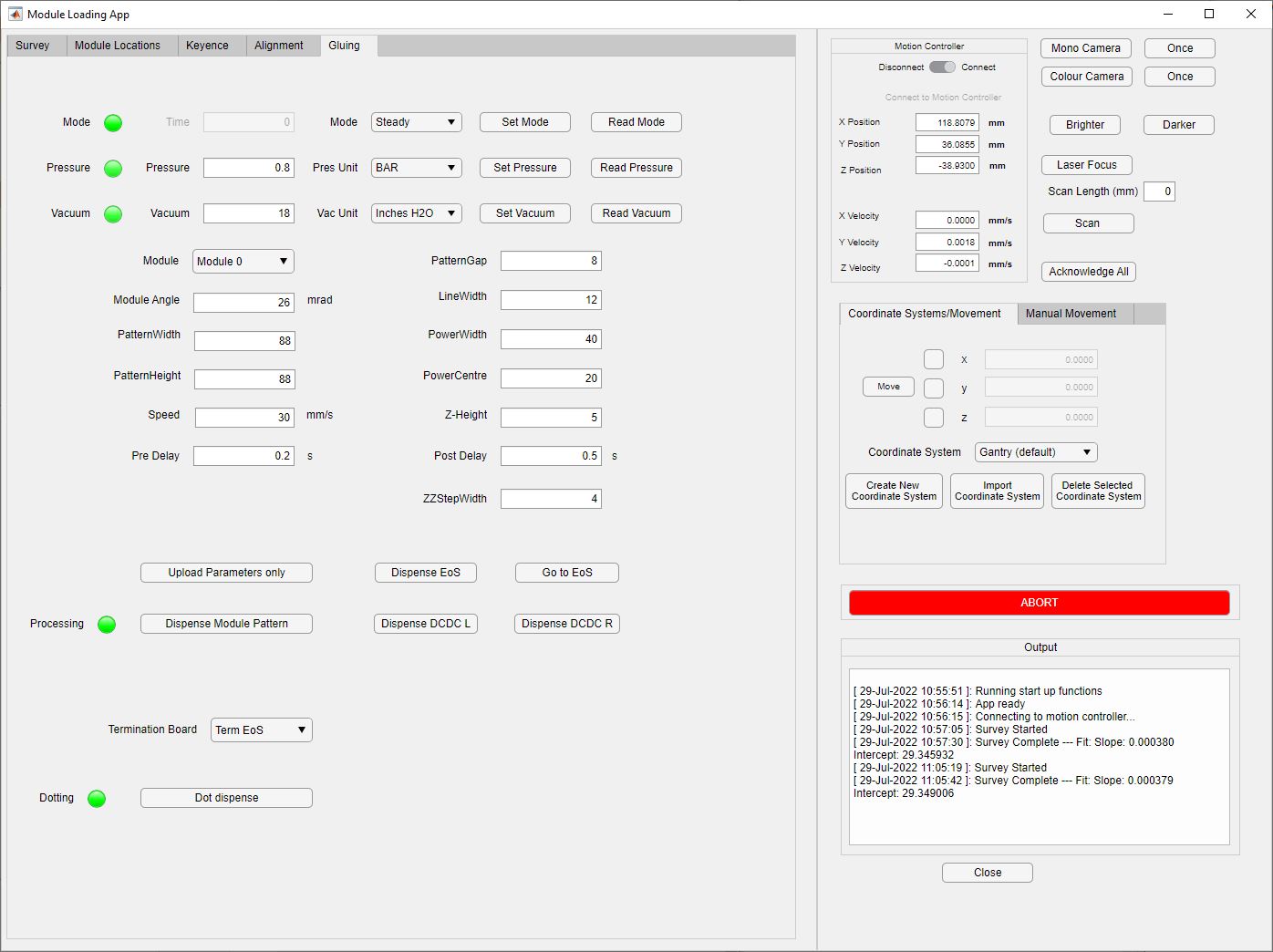

Module glue dispensing happens through use of the glueing tab, and can only be operated after alignment is finished.

The tab currently allows setting of various parameters around glue dispensing, which will hopefully turn easier in the future - hold your breath!
