Surveying functionality

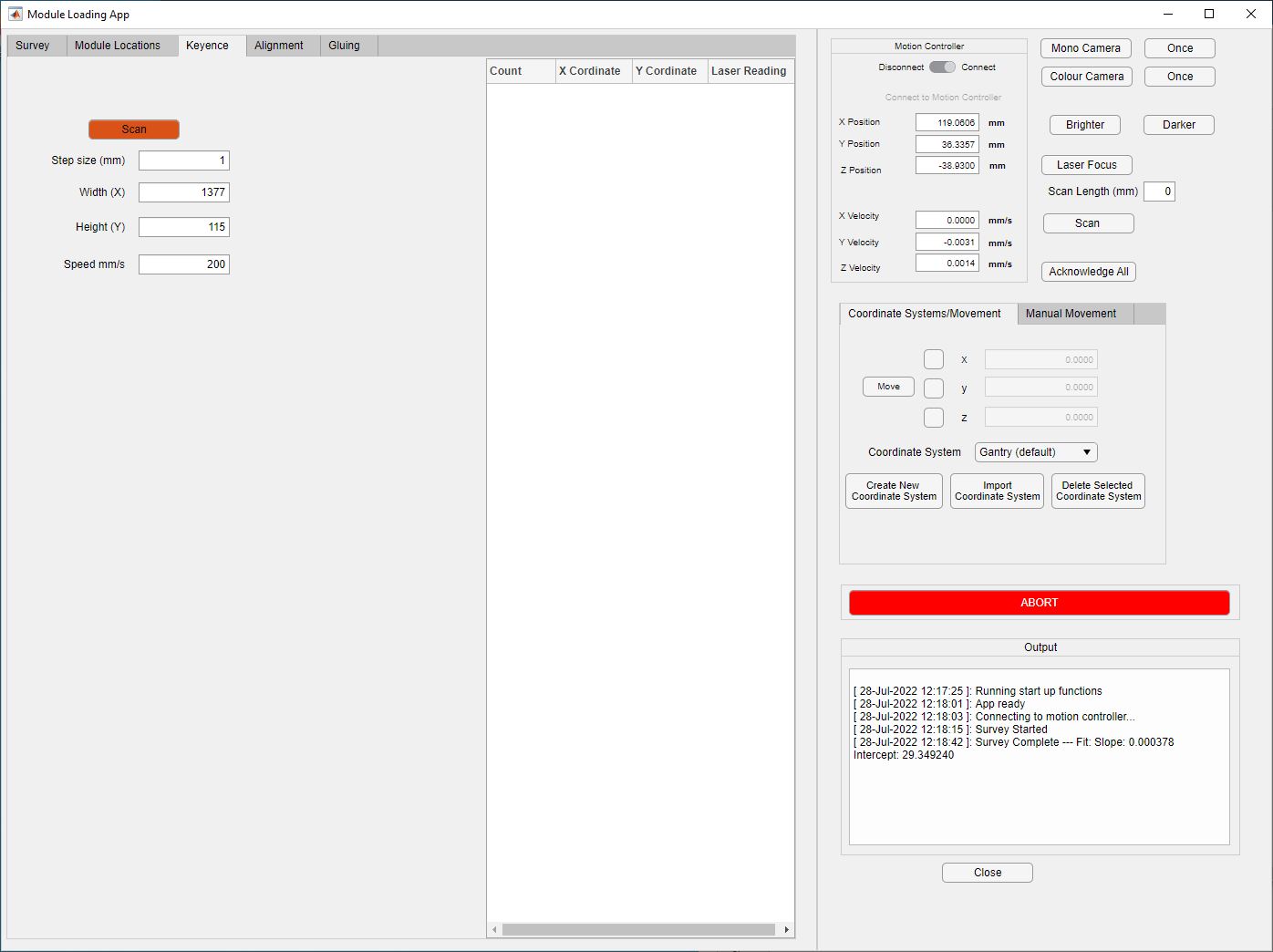

Strip Tracker Module Loading Software showing the survey tab (Keyence)

The survey (Keyence) tab as presented to the user after running the stave alignment.

Currently surveying functionality is split across multiple tabs, and we’re still working to unify that. Surveying can be split into 3 parts:

  1. Height surveys: Measuring the height at various points across the structure (unloaded or loaded) to identify height profiles/shapes.

  2. Positional surveys: a) Module positions b) Stave-core built in positions (Fiducial markers in bustapes)

Height survey

Currently the Keyence tab only provieds access to a height survey starting in the z~1.4m corner of the Stave core with raw data being written out to a csv file.

Todo

Describe what/how is measured. Need to be clear that this currently delivers no accurate lateral position
